High-Performance, Lightweight Pumping Solutions for Demanding Aerospace Applications
Lee Positive Displacement Pumps – Proven Performance in a Compact Package

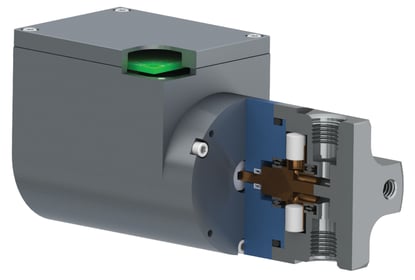

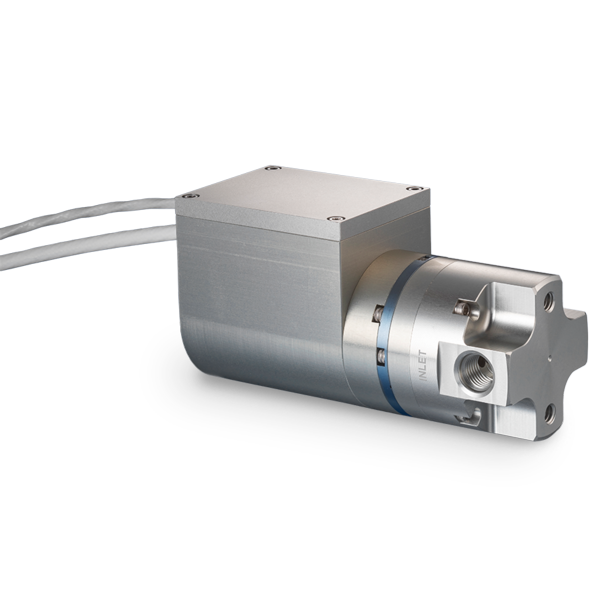

The 200 Series Pump, one of the latest innovations in our radial piston pump line, is engineered for aerospace fuel systems. This compact pump combines precision motor control with the proven durability of our 200 Series design.

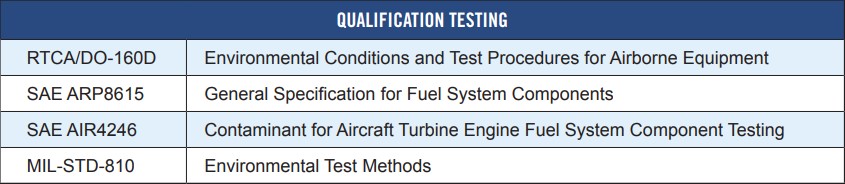

Qualified to multiple aerospace specifications and rated for 1,000 hours of continuous operation, this pump delivers reliable performance in extreme environments. Its powerful brushless DC servo motor and integrated drive unit provide a lightweight, 2-pound solution, with high flow and pressure capabilities.
With output reaching 200 pounds per hour at pressures up to 100 psid, the 200 Series Pump provides unmatched efficiency, controllability, and size-to-performance ratio for mission-critical aerospace applications.
Key Performance And Features
- Self-Priming Design
- Wide Input Voltage Range: 12–36 VDC
- Operating Temperature: −40°F to 212°F
- Maximum Pressure: Up to 100 psid
- Flow Rate: Up to 235 lb/hr of jet fuel
- Variable Speed Control
- Built-In Operational Feedback:
– Pump Speed
– Motor Current
– Fault Monitoring
