INNOVATIVE, SILENT, PULSATION-FREE MICROPUMPS
The disc pump is a revolutionary, ultrasonic, pneumatic piezoelectric micropump that generates pressure or vacuum in a small, silent, vibration-free form factor.
CONTACT A SALES ENGINEERAnimation
ADVANCED MICROPUMP TECHNOLOGY FOR HIGH PERFORMANCE SYSTEMS
The disc pump is designed for highly accurate, ultrasmooth, flow control, delivering unrivalled pneumatic performance wherever precision control of small volumes is critical.
While not intended to flow liquids directly, its infinite turn down ratio and pulsation-free flow allow the user to control liquids indirectly via an air-over-liquid method.
FEATURES
- Silent (< 10 dB), vibration-free operation
- Ultrafast, millisecond response time
- High precision controllability: < 0.1%
- Lightweight (5 g), compact size (29 mm diameter)
- True pulsation-free flow
ENABLING INNOVATION IN MANY APPLICATIONS
The disc pump is enabling markets to evolve with smaller, quieter, higher performing devices. Combined with a sensor and electronics, it is an all-in-one pressure-regulator solution (Smart Pump Module), which eliminates the need for other system components, often saving not just weight, but cost.
Life Sciences

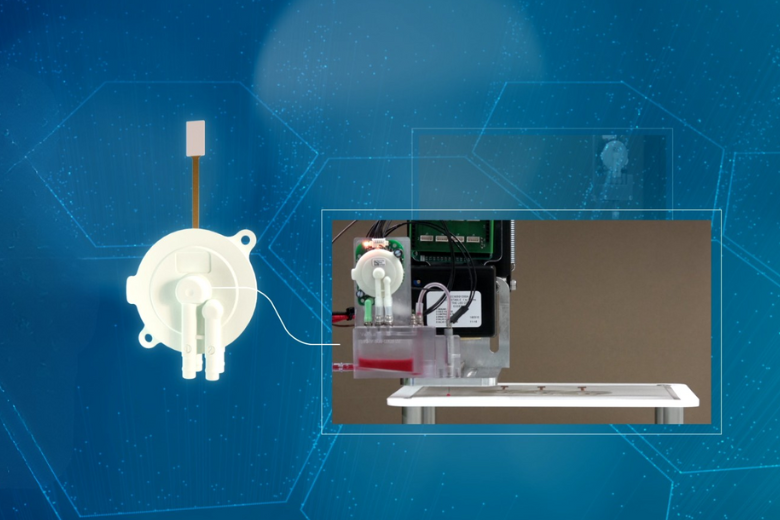

- Microfluidics
- Lab-on-a-chip
- Time-metered dosing
Medical
- Blood Pressure Monitoring

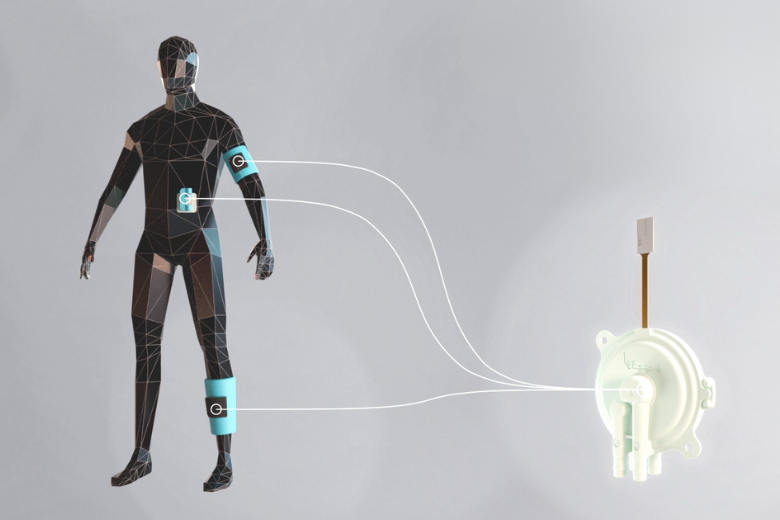

- Compression Therapy
- Patient Simulators
- Patient Monitoring
Portable Sensing Technology

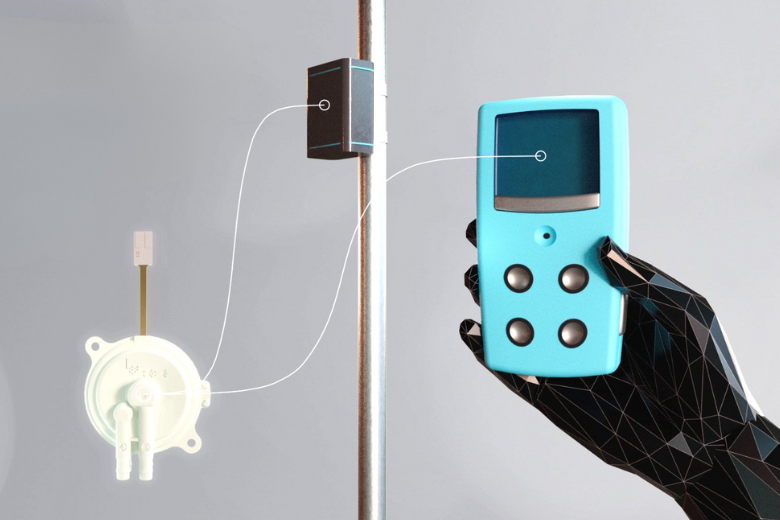

- Environmental Monitoring
- Pick & Place Robotics
PERFORMANCE RANGE
PRODUCT LINE |
SUMMARY |
STALL PRESSURE (mbar) |
FREE FLOW (LPM) |
STALL VACUUM (mbar) |
| BL Series | Entry-level pumps striking a balance between performance and cost | 300 | 1.65 | 200 |
| XP Series | Highest performance and widest temperature range of -25°C to 55°C | 400 | 2.00 | 300 |
| LT Series | Long life models offering 17,000+ hours1 of continuous operation | 270 | 1.20 | 220 |
| HP Series | High differential pressure models | 600 | 0.10 | 400 |
| US Series | Ultra-slim, manifold mount pumps with an integrated filter | 420 | 0.92 | N/A |
1Represents onset time of performance degradation. Pump will continue to operate beyond this point at a reduced performance level. See TG005 Disc Pump Wear Characteristics for more information on pump performance over life.

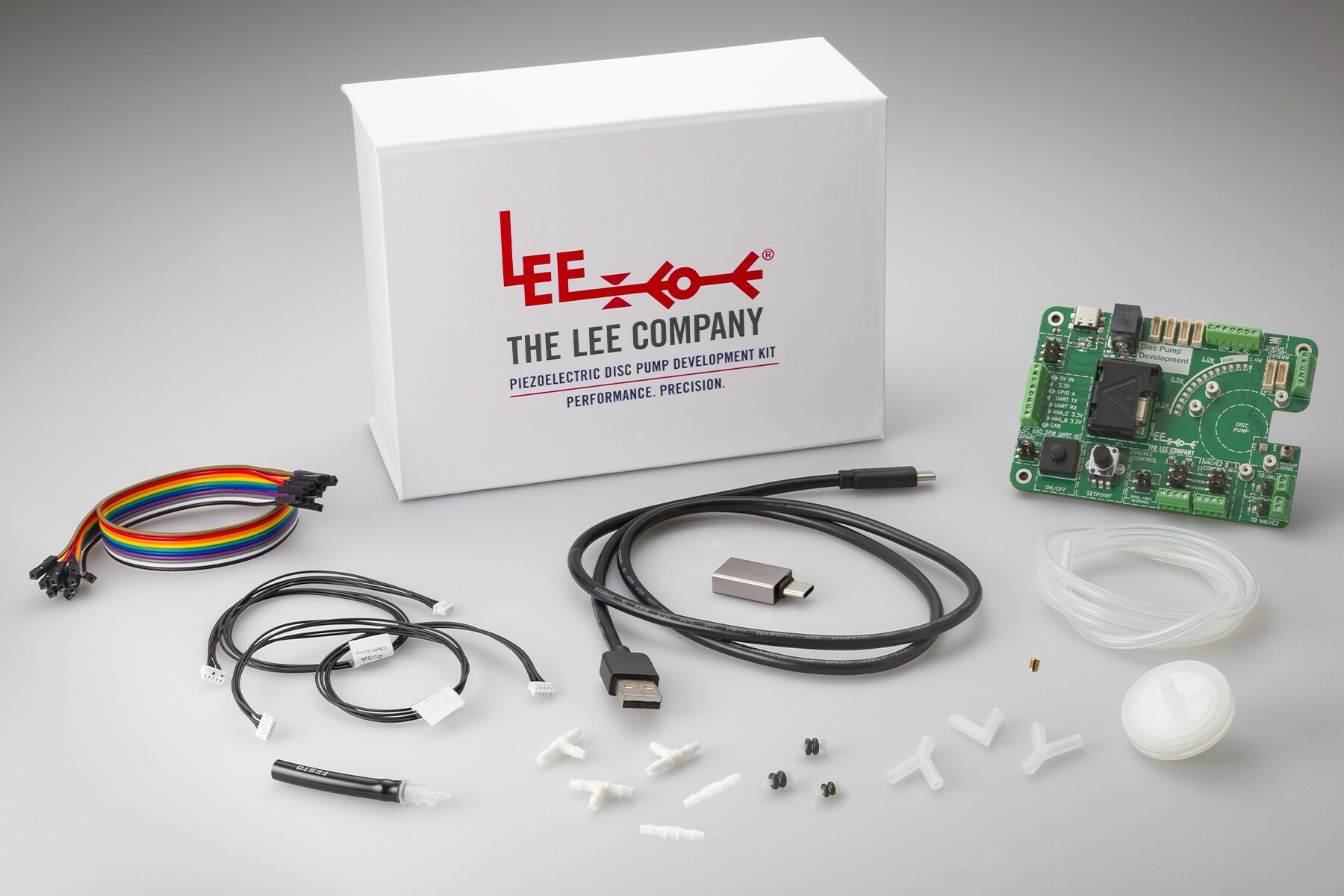

Looking to test the capabilities and explore the functionality of our disc pump and solenoid valves? Our Development Kit is for you!
